The Definitive Guide to Volumetric Mass Metrology, Specific Gravity & Archimedes Buoyancy

Whether assessing API gravity for light crude trading, balancing ballast for naval architecture, or deriving slurry concentrations in mineral processing, density is one of the most critical physical properties in chemical and mechanical engineering. Explore how volumetric mass normalization works, how specific gravity scales correlate, and how to verify computations using the Universal Density Converter & Archimedes Studio.

1. Fundamental Principles: What is Density Under ISO 80000-4?

In physical sciences and metrology, density (symbolized by the Greek letter $\rho$, rho) is defined as the volumetric mass of a homogeneous substance. Under the International System of Quantities standard ISO 80000-4 (Mechanics), the base coherent unit of density is:

While the base SI unit is the kilogram per cubic meter (kg/m³), industrial applications frequently employ traditional, regional, or industry-tailored units. For instance, chemistry laboratories rely on g/cm³ or g/mL, municipal water distribution uses kg/L or lb/US gal, and structural engineering across the United States relies on lb/ft³ (pounds per cubic foot).

To switch between these scales instantaneously without rounding errors, engineers use the Universal Density Converter on RiazHub, which guarantees 100% in-browser mathematical normalization using pure SI base factors.

2. Density vs. Specific Gravity vs. Specific Weight: The Crucial Distinctions

Engineering specifications often mix the terms density, specific gravity, and specific weight. Confusing these terms leads to catastrophic errors in structural calculations and fluid piping design:

• Mass Density (ρ): An intrinsic physical property defined as mass divided by volume ($\text{kg/m}^3$ or $\text{lb/ft}^3$). It does not change with gravitational acceleration.
• Specific Gravity (SG) / Relative Density: A dimensionless ratio comparing the density of a substance to a reference fluid (traditionally pure de-aerated water at its maximum density point of 4.0°C / 39.2°F, where $\rho_{\text{H}_2\text{O}} \approx 1,000\text{ kg/m}^3$):
  Specific Gravity Equation

  SG = ρ_{substance} / ρ_{reference} = ρ_{substance} / 1,000 kg/m³

  Because SG is dimensionless, a substance with a density of $2,700\text{ kg/m}^3$ (such as aluminum) has an SG of $2.700$, regardless of whether you calculate in metric or imperial units.

• Specific Weight (γ): The gravitational force (weight) exerted per unit volume ($\gamma = \rho \times g$). In SI, it is measured in $\text{N/m}^3$; in US Customary, in $\text{lbf/ft}^3$. Unlike density, specific weight changes with altitude and planetary gravitational fields.

3. Petroleum & Hydrometer Engineering Scales

The oil, petrochemical, chemical refining, and beverage fermentation sectors utilize specialized hydrometer scales calibrated for rapid float assays. The RiazHub Density Studio calculates all of these scales simultaneously:

A. American Petroleum Institute Gravity (°API)

Governed by ASTM D1298 and API MPMS Chapter 9, API Gravity is an inverse hydrometric scale calibrated at 60°F (15.56°C) for crude oil commerce:

Because of the inverse formula, lighter (less dense) crudes yield a higher °API value. Water at 60°F has an SG of 1.000 and an API gravity of exactly 10.0°API:

• Light Sweet Crude (> 31.1°API): Yields high fractions of high-value gasoline and jet fuel; commands market premiums (e.g., WTI and Brent).
• Medium Crude (22.3° – 31.1°API): Typical refinery feedstocks.
• Heavy Crude (10.0° – 22.3°API): High bitumen and asphalt content; requires extensive cracking.
• Extra Heavy / Bitumen (< 10.0°API): Denser than water (SG > 1.0), meaning it sinks in freshwater.

B. Degrees Baumé (°Bé)

Introduced in 1768 by French chemist Antoine Baumé, this scale remains prevalent in sulfuric acid production, chemical manufacturing, and fruit processing. Two formulas apply:

• For liquids heavier than water (SG ≥ 1): $\text{°Bé} = 145 – (145 / \text{SG})$
• For liquids lighter than water (SG < 1): $\text{°Bé} = (140 / \text{SG}) – 130$

C. Degrees Plato (°P) and Degrees Brix (°Bx)

Used ubiquitously across commercial brewing, winemaking, and food science. Both scales measure the dissolved percentage of sucrose and soluble extract by weight:

4. Archimedes’ Principle & Interactive Liquid Flotation Simulation

Formulated over 2,200 years ago by Archimedes of Syracuse, the law of buoyancy states that any object immersed in a fluid experiences an upward force equal to the weight of the fluid it displaces:

When an object rests in static equilibrium without sinking to the bottom, the buoyant force equals the gravitational downward force ($F_B = F_g$). This yields the submerged volume fraction formula:

Inside the RiazHub Archimedes Buoyancy Tank, you can test substances across multiple fluids—including freshwater ($1,000\text{ kg/m}^3$), seawater ($1,025\text{ kg/m}^3$), crude oil ($850\text{ kg/m}^3$), glycerin ($1,260\text{ kg/m}^3$), and liquid mercury ($13,546\text{ kg/m}^3$)—with live harmonic bobbing animations and real-time force vectors.

5. Master Density Benchmark Table: 15 Common Materials

The following reference table outlines typical volumetric mass densities and flotation states in pure water at standard laboratory temperatures (20°C / 68°F):

6. Solving the Density-Mass-Volume Triangle

Engineers constantly need to solve for one missing variable when designing tanks, calculating freight shipping payloads, or verifying material thickness. The formula triangle permits three permutations:

1. Calculate Density: $\rho = m / V$ (Divide total measured weight by container volume).
2. Calculate Mass: $m = \rho \times V$ (Determine how heavy a known volume of liquid or metal will be).
3. Calculate Volume: $V = m / \rho$ (Determine the container capacity needed to hold a given weight of fluid).

The Mass ⇄ Volume ⇄ Density Triangle Solver on RiazHub handles this with dynamic unit pairing (e.g., input mass in Metric Tons, volume in US Gallons, and solve for Density in $\text{lb/ft}^3$ with step-by-step formula derivations).

7. Temperature & Pressure Dependencies

Density is not an invariant scalar; it changes as substances undergo thermal expansion and compression:

• Liquids: Liquids expand when heated, decreasing their density. Because water reaches its peak density of $999.972\text{ kg/m}^3$ at 3.98°C, thermal density tables are required when conducting custody transfer. The international petroleum trade adheres to 60°F (15.56°C), utilizing volume correction factors (VCF).
• Gases: Gases are highly compressible. Under the Ideal Gas Law ($P = \rho R T$), gas density is directly proportional to absolute pressure and inversely proportional to absolute temperature. Always reference whether density was measured at STP (0°C, 1 atm) or NTP (20°C, 1 atm).

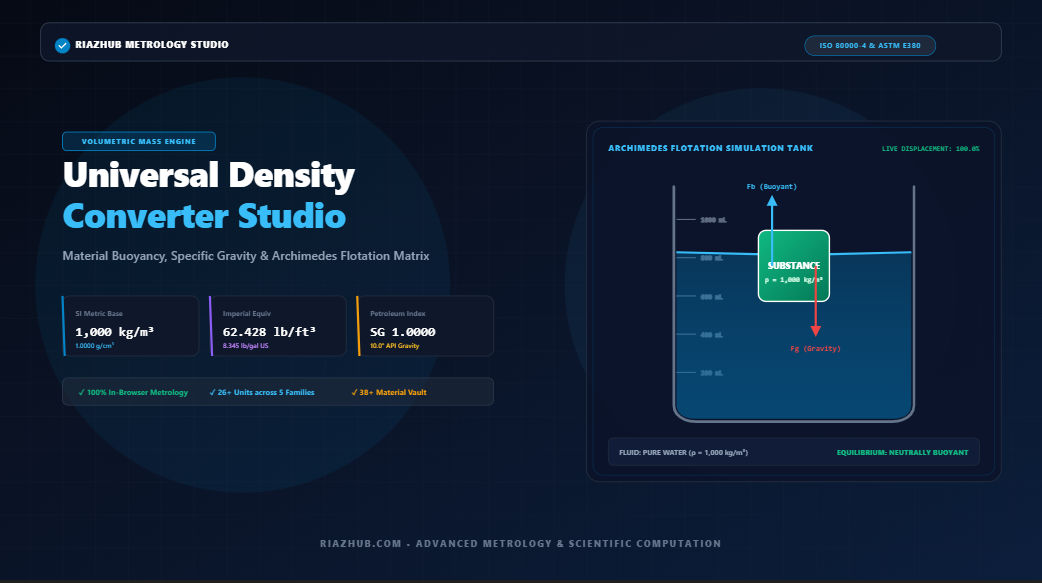

8. How to Use the RiazHub Density & Buoyancy Studio

1. Real-Time Ingestion: Navigate to the Universal Density Converter Studio and type any numerical density into the main input.
2. Unit Selection: Select your source unit from 26+ available options (including SI Metric, Imperial/US Customary, and Petroleum Scales).
3. Archimedes Water Tank: Switch to the Archimedes Flotation Tank tab to observe a real-time 2D simulation showing your material submerged in freshwater, seawater, oil, or mercury.
4. 38+ Substance Vault: Need benchmarks for pure Gold, Aviation Kerosene, or Osmium? Open the reference vault and click ⚡ Load to auto-populate all conversion matrices.
5. Dossier Card & Export: Generate an ISO-compliant 1200×630 specification card for documentation, or export full CSV matrices for your lab notes.
